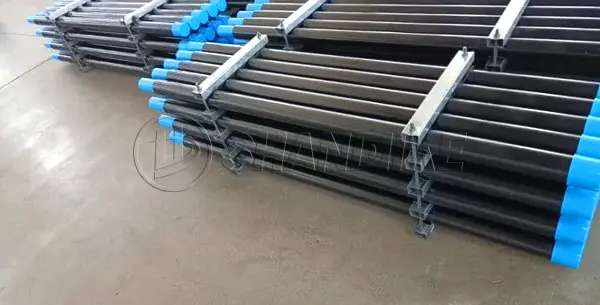

What is T51 Rock Drifter Rod
About T51 Rock Drifter Rod
The T51 drifter rod, also commonly referred to as a T51 extension rod or simply a drill rod, is a key component in top hammer drilling operations. Think of it as the “power transmission shaft” between the hydraulic drifter and the drill bit: the high-frequency impact force and rotational torque generated by the drill rig are steadily delivered to the rock face through this rod.
The “T51” in its name refers to the thread connection profile — a 51 mm trapezoidal thread. This design is specifically optimized for deep-hole, high-power bench drilling and production drilling, making it a common heavy-duty configuration.
Main Applications
Because the T51 rod transmits high-frequency impact energy to the bottom of the hole with minimal loss, it is especially well-suited for tough working conditions:
- Underground Mining and Tunneling — for production blast holes and roadway excavation
- Surface Quarrying and Bench Drilling — drilling deep, precise patterns in hard rock formations such as granite and limestone
- Civil Engineering — anchor hole drilling, foundation treatment, and infrastructure construction projects
Key Specifications
| Parameter | Description |
|---|---|
| Thread Specification | T51 trapezoidal thread (51 mm) |
| Rod Type | Male/Male (M/M) — requires a separate coupling sleeve; Male/Female (M/F) — speed rod with integrated female sleeve on one end |
| Cross Section | Round (lightweight, suitable for conventional extension); Hexagonal (heavy-duty, better rigidity, higher energy transfer and flushing efficiency) |
| Length Range | 610 mm – 6,400 mm |
| Common Length | 3,660 mm (12 ft) |
| Material | Fully carburized and heat-treated alloy steel |
| Structural Feature | Hollow rod with a central flushing hole (for compressed air or water to remove cuttings) |
| Compatible Equipment | Top hammer hydraulic drifters, fits major brands |
| Drilling Depth | Deep-hole drilling (actual depth depends on equipment and working conditions) |
| Impact Requirement | High-impact energy, high-frequency impact applications |
