SHANDIKE GT60 Drifter Rod: Specs, Process & Selection Guide
GT60 Drifter Rod: Technical Specifications and Manufacturing Advantages from LUOYANG SHANDIKE
A GT60 drifter rod is a rope-thread sectional drill rod used with hydraulic drifters in top hammer drilling for tunneling, mining and quarrying. At LUOYANG SHANDIKE, we manufacture GT60 drifter rods and matching couplings for heavy-duty drilling, with a focus on advanced raw material forming, thread precision, and heat treatment control.
What Is a GT60 Drifter Rod?

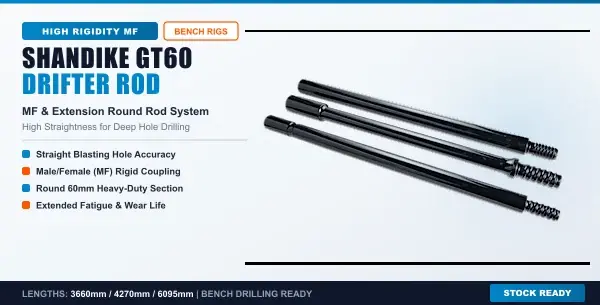

A GT60 drifter rod is a sectional rod with GT60 rope threads at both ends. It transmits impact and rotation energy from a hydraulic drifter to the drill bit through a rod string connected by GT60 couplings.
GT60 drifter rods are typically used in top hammer drilling for holes from about 64 mm to 102 mm, depending on rod diameter, bit size and drifter power. Because the thread carries high impact loads, material structure and heat treatment are the most critical quality factors.
GT60 Drifter Rod Specifications from LUOYANG SHANDIKE
| Item | Typical Range |
|---|---|
| Thread type | GT60 rope thread |
| Rod diameter | Φ32 / Φ35 / Φ38 / Φ39 / Φ45 mm |
| Length | 3.0 m / 3.66 m / 4.3 m / 5.5 m |
| Material | High-strength alloy steel |
| Heat treatment | Carburizing / induction hardening on thread and body |
| Connection | Male thread one end, female thread the other |
| Matching parts | GT60 coupling, GT60 threaded bit |
| Applications | Tunneling, underground mining, quarrying, bench drilling |
Specifications can be customized by drifter model, hole size and feed beam length. Contact our technical team to confirm the exact configuration.
Core-Rolling Process: The Secret to High-End Drill Steel
The service life of a GT60 drifter rod is determined mainly by how the steel tube is formed. At LUOYANG SHANDIKE, we utilize advanced Core-Rolling (Mandrel Rolling) technology—a precision forming process specifically for high-end hollow drill steel and sectional thread drill rods.
The core principle relies on uniform extrusion from external rollers and full-length limiting support from a high-precision internal mandrel. This achieves synchronous, uniform, and controllable plastic deformation of the steel inside and out. Compared with traditional processes, core-rolling brings decisive quality improvements to heavy-duty GT60 drifter rods:
- Precision Forming: High dimensional accuracy, uniform wall thickness, smooth inner bore, and no spiral marks.
- Fine Microstructure: Dense and refined grain structure ensures stable internal quality.
- Continuous Metal Flow Lines: Significantly improves fatigue resistance and load-bearing capacity.
- Balanced Residual Stress: Excellent heat treatment stability, preventing deformation and extending the service life of drill rods under extreme drilling conditions.
Thread and Heat Treatment Control
Beyond the core-rolling process, thread geometry and heat treatment are strictly controlled:
- Thread precision — GT60 rope thread must engage the coupling and bit correctly. Poor thread geometry causes galling, loosening and early fatigue failure.
- Heat treatment — carburizing or induction hardening on the thread and body balances surface hardness and core toughness. Over-hardening causes brittle fracture; under-hardening causes rapid wear.
At LUOYANG SHANDIKE, GT60 drifter rods are produced with controlled machining and can be supplied with material and inspection reports on request.
Compatible Rock Drills and Applications
GT60 drifter rods are commonly matched with hydraulic drifters such as the Epiroc COP series and comparable top hammer rigs. Typical applications include:
- Tunnel excavation and drifting
- Underground mining production drilling
- Quarry and open-pit bench drilling
- Ground engineering and anchor drilling
Because GT60 is a heavy-duty thread system, it suits high-impact, high-power drifters where rod fatigue life is critical.
How to Choose the Right GT60 Drifter Rod
- Match the thread exactly — GT60 must match your drifter, coupling and bit. Do not mix with R32, R38 or T38 systems.
- Select rod diameter by hole size and drifter power — larger diameters improve stiffness but must suit the bit and rig.
- Choose length based on the feed beam and rod changer — sectional rod length should match your rig’s stroke and handling method.
- Check material and manufacturing process — ask for details on steel forming (like core-rolling) and heat treatment reports for critical projects.
- Use matched couplings — worn couplings cause thread failure; replace them together with the rods.
GT60 vs Other Thread Types
| Thread | Typical Use | Relative Size |
|---|---|---|
| GT60 | Heavy top hammer drilling | Large, high-impact |
| T38 | Medium top hammer | Medium |
| R32 / R38 | Smaller top hammer | Smaller |
GT60 is chosen when hole size and drifter power demand higher energy transmission and longer service life.
Maintenance and Replacement Tips
- Inspect threads and couplings regularly for wear and galling.
- Lubricate threads as recommended by the manufacturer.
- Replace worn couplings before they damage rod threads.
- Store rods clean and protected to avoid corrosion.
Why LUOYANG SHANDIKE

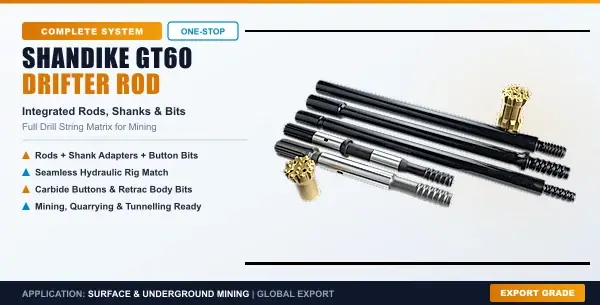

LUOYANG SHANDIKE supplies GT60 drifter rods, couplings and threaded bits for top hammer drilling. Our technical approach focuses on core-rolling forming, precise thread machining, and strict heat treatment consistency, with customization available for different drifter models and drilling conditions. We support customers with specification confirmation, material reports and after-sales technical guidance.
FAQ
Q: What are the specific benefits of LUOYANG SHANDIKE’s “core-rolling” process for GT60 rods?
A: Core-rolling is our unique advantage in manufacturing high-end hollow drill steel. It relies on synchronous extrusion from external rollers and a high-precision internal mandrel, ensuring uniform deformation inside and out. This results in uniform wall thickness, a smooth inner bore without spiral marks, and continuous metal flow lines. Consequently, it significantly improves the fatigue resistance and load-bearing capacity of GT60 rods, extending their service life under extreme drilling conditions.
Q: How do you ensure the thread precision of the GT60 rod and its perfect match with the rock drill?
A: Threads are the most critical part of a drifter rod. Based on the high-quality tubes ensured by core-rolling, we machine the GT60 rope threads using high-precision CNC lathes. We apply strict carburizing or induction hardening to the thread area to balance surface hardness and core toughness, preventing early wear. Furthermore, our GT60 rods must be used with standard GT60 couplings and bits; mixing with R32 or T38 systems is strictly prohibited.
Q: Can you customize the GT60 drifter rods based on our rock drill model and working conditions?
A: Yes. While we offer standard dimensions (e.g., Φ32-Φ45 mm rod diameters, 3.0-5.5 m lengths), we fully support customization. Simply provide your drifter model (e.g., Epiroc COP series), hole diameter, feed beam dimensions, and rock hardness. Our technical team will recommend the most suitable rod diameter, wall thickness, and thread configuration, along with material and hardness inspection reports.
