Drill Rod Coupling Sleeve

Coupling Sleeve is a sleeve-shaped rock drilling component with internal threads for connecting shank adapter and drill rod, or drill rod and drill rod. We produce and provide three types of drill rod couplings – semi bridge couplings, full bridge couplings, and crossover couplings, which can meet the requirements of all applications.

  • Thread type: R25, R32, R35, R38, T38, T45, T51
  • Diameter: 35mm, 40mm, 45mm, 55mm, 63mm, 66mm, 72mm, 76mm
  • Length: 150mm, 155mm, 170mm, 180mm , 180mm, 190mm, 210mm , 235mm
  • Coupling Type: Standard Couplings (Semi bridge Couplings),Full bridge Couplings,Crossover Couplings (Adapter Couplings, Reduction Couplings, Reducer Coupling)
  • Over 15 years experience in rock drilling TooLS industry.
  • Shandike only uses high-quality raw materials.
  • We set up our products standard matched with world leading brands.
  • Advanced processing equipment extends the service life of products.

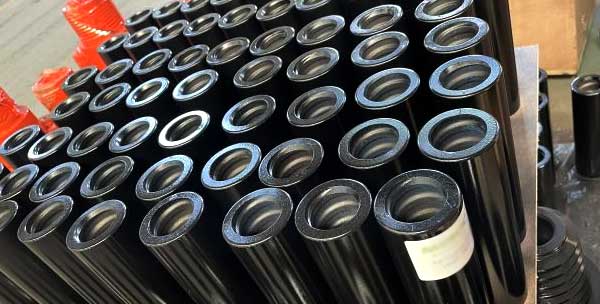

Drill Rod Coupling Sleeve is a sleeve-shaped rock drilling component with internal threads for connecting shank adapter and drill rod, or drill rod and drill rod. We produce and provide three types of drill rod couplings – semi bridge couplings, full bridge couplings, and crossover couplings, which can meet the requirements of all applications.

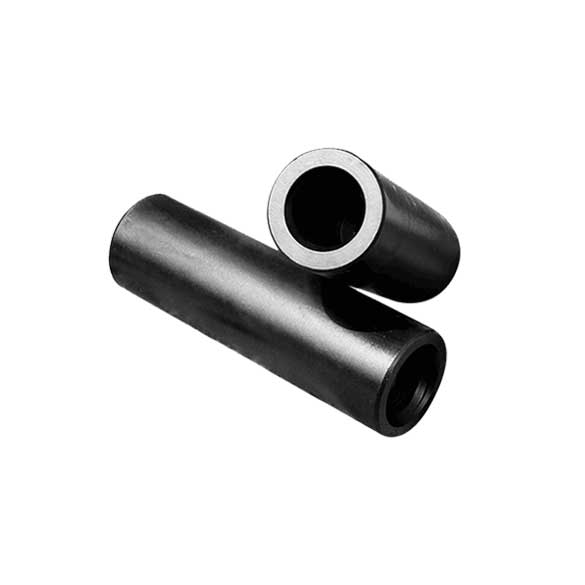

Standard coupling sleeve

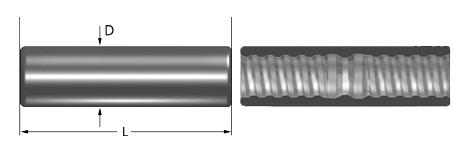

Standard coupling sleeve, also known as semi bridge coupling sleeve, has a section of the bridge without a thread in the middle. The threaded part of the drill pipe cannot be screwed through the bridge part of the coupling, and the end of the thread can closely adhere to the casing bridge zone. Standard coupling sleeve is particularly suitable for high-torque drilling rigs. Most rope thread (R thread) and trapezoidal thread (T thread) coupling sleeves are with half-bridge type. The half-bridge type is by far the most widely used couplings.

Standard coupling sleeve

Full bridge coupling sleeve

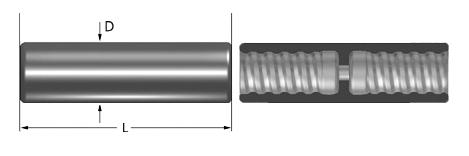

Full bridge coupling sleeve can completely eliminate the looseness of the coupling sleeves along with the threaded connection. It is mainly used in surface mining, with better disassembly characteristics, firmer connections, and almost no clamping situation.

Crossover couplings

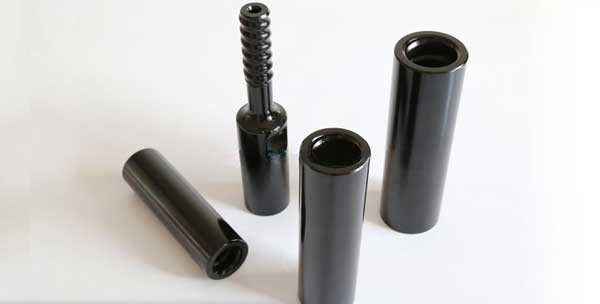

Crossover couplings are used to convert different thread types or thread diameter sizes.

Applications

Coupling Sleeve
ThreadDiameterLength
mminchmminch
R25351 19/501505 9/10
R28401 29/501556 1/10
R32451 3/41706 57/64
R38552 5/321706 57/64
T38552 5/321907 33/64
T45632 15/322108 17/64
T45662 19/322108 17/64
T51722 7/82359 1/4
T517632359 1/4
Adapter Coupling / Crossover Coupling
ThreadDiameterLength
ABmminchmminch
R25R32451 3/41706 57/64
R28R32451 3/41706 57/64
R32R38552 5/321807 1/8
R32T38552 5/321807 1/8
R38T38552 5/321907 33/64
