SHANDIKE Drifter Rods Guide: R32 R35 T38 T45 T51 GT60 Selection

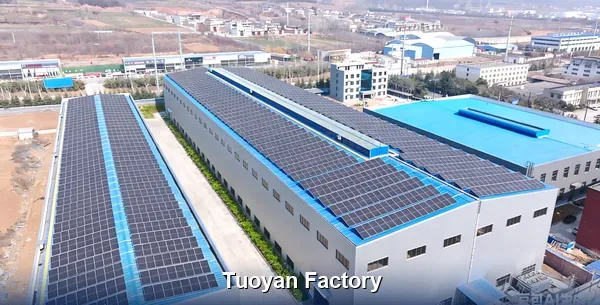

SHANDIKE is a premium brand owned by TUOYAN Drilling Tools Group. Engineered by the group’s advanced metallurgical facilities, SHANDIKE drifter rods—including R32, R35, T38, T45, T51, and GT60—are built to maximize energy transfer and minimize thread wear in global mining and tunneling projects.
In top-hammer drilling operations, selecting the right rock drilling tools is the defining factor between high productivity and costly downtime. SHANDIKE drifter rods—including the widely used R32, R35, T38, T45, T51, and GT60 models—are engineered to maximize impact energy transmission from the rock drill to the bit while minimizing thread wear.
Whether you are operating in underground tunneling, bench drilling, or production mining, matching the correct thread profile and rod size to your formation is essential. This comprehensive guide breaks down the specifications, applications, and selection criteria for the full SHANDIKE drifter rod lineup.
Understanding SHANDIKE Drifter Rod Thread Types
The thread design directly dictates the rod’s strength, uncoupling ease, and energy efficiency. SHANDIKE offers two primary thread profiles:
- R Threads (R32, R35): Rope threads feature a smaller pitch. They are ideal for light-to-medium drilling setups where easy uncoupling and tight connections in smaller hole diameters are required.
- T Threads (T38, T45, T51, GT60): Trapezoidal (T) threads have a larger pitch and heavier cross-section. They provide superior rigid connections, handle higher rotational torque, and are designed for heavy-duty, deep-hole benching and production drilling.
SHANDIKE Drifter Rod Product Lineup & Applications
1. SHANDIKE R32 Drifter Rods
- Target Hole Range: 43mm – 64mm
- Primary Application: Underground drifting, tunneling, and light bolting.
- Key Advantage: Excellent flexibility and optimal flushing capacity for narrow-heading development. It is the industry standard for traditional small-hole drifting jumbos.
| Parameter | Specification | Remarks |
|---|---|---|
| Thread Type | R32 (Rope Thread) | Small pitch for easy uncoupling |
| Rod Type | Hexagonal 25mm / Hex 28mm / Round 32mm | Hexagonal is highly common for tunneling |
| Drilling Hole Range | 43 mm – 64 mm (1 11/16″ – 2 1/2″) | Standard light drifting operations |
| Standard Lengths | 2440mm, 3050mm, 3660mm, 4310mm | Custom lengths available upon request |
| Flushing Hole Diameter | 11.5 mm / 14 mm | Ensures high fluid or air velocity |
| Core Application | Underground drifting, tunneling, light bolting | Ideal for single-boom or light jumbo rigs |
2. SHANDIKE R35 Drifter Rods
- Target Hole Range: 48mm – 76mm
- Primary Application: Medium-duty underground drifting and long-hole production.
- Key Advantage: Provides a rigid bridge between R32 and T38. It offers increased bending stiffness compared to R32, reducing hole deviation in fractured ground conditions.
| Parameter | Specification | Remarks |
|---|---|---|
| Thread Type | R35 (Rope Thread) | Transition size for intermediate drill power |
| Rod Type | Round 35 mm / Round 39 mm | Round body design minimizes stress ripples |
| Drilling Hole Range | 48 mm – 76 mm (1 7/8″ – 3″) | Well-suited for medium-duty drifting |
| Standard Lengths | 3050mm, 3660mm, 4310mm | Optimized for extension rod setups |
| Flushing Hole Diameter | 14.5 mm | Enhanced cutting evacuation performance |
| Core Application | Long-hole production mining, mid-size tunneling | Bridges the structural gap between R32 and T38 |
3. SHANDIKE T38 Drifter Rods
- Target Hole Range: 64mm – 89mm
- Primary Application: Heavy tunneling, drifting, and small-scale bench drilling.
- Key Advantage: A highly versatile rod balanced for both drifting jumbos and surface rigs. The trapezoidal thread ensures high torque resistance and extended thread life.
| Parameter | Specification | Remarks |
|---|---|---|
| Thread Type | T38 (Trapezoidal Thread) | Heavy-duty design with high torque resistance |
| Rod Type | Hex 32mm / Hex 35mm / Round 39mm | MF (Male/Female) rods are highly popular |
| Drilling Hole Range | 64 mm – 89 mm (2 1/2″ – 3 1/2″) | Balanced for both drifting and benching |
| Standard Lengths | 3050mm, 3660mm, 4310mm, 4915mm | Fits mainstream modern drifting jumbos |
| Flushing Hole Diameter | 14.5 mm / 17 mm | Optimized for water and air flushing combination |
| Core Application | Heavy tunneling, small-scale surface benching | The industry-standard workhorse for contractors |
4. SHANDIKE T45 Drifter Rods
- Target Hole Range: 76mm – 102mm
- Primary Application: Surface bench drilling, quarrying, and underground production mining.
- Key Advantage: Features a heavier cross-section to transmit the high impact power of modern hydraulic drifters without premature structural failure.
| Parameter | Specification | Remarks |
|---|---|---|
| Thread Type | T45 (Trapezoidal Thread) | Heavier cross-section to absorb high impact |
| Rod Type | Round 46 mm | Available in standard Extension and MF types |
| Drilling Hole Range | 76 mm – 102 mm (3″ – 4″) | Engineered for surface production drilling |
| Standard Lengths | 1525mm, 1830mm, 3050mm, 3660mm | Standard universal extension rod sizing |
| Flushing Hole Diameter | 17 mm / 21.5 mm | Heavy-duty volume flushing flow rate |
| Core Application | Surface bench drilling, quarrying, bench mining | Matches heavy modern hydraulic rock drifters |
5. SHANDIKE T51 Drifter Rods
- Target Hole Range: 89mm – 127mm
- Primary Application: Large-scale open-pit mining, quarrying, and deep-hole production.
- Key Advantage: Designed to minimize hole deviation over long drilling distances. Exceptional resistance to bending stresses in hard, abrasive rock formations.
| Parameter | Specification | Remarks |
|---|---|---|
| Thread Type | T51 (Trapezoidal Thread) | Rigid profile designed to combat deep-hole bending |
| Rod Type | Round 52 mm | MF-Rods are standard for automated rod handling |
| Drilling Hole Range | 89 mm – 127 mm (3 1/2″ – 5″) | Ideal for high-diameter benching applications |
| Standard Lengths | 3050mm, 3660mm, 4270mm, 6100mm | Perfect for multi-rod automated carousels |
| Flushing Hole Diameter | 21.5 mm / 26 mm | Maximizes bailing velocity in sticky formations |
| Core Application | Open-pit mining, large quarrying, deep production | Delivers excellent hole straightness control |
6. SHANDIKE GT60 Drifter Rods
- Target Hole Range: 92mm – 152mm
- Primary Application: High-capacity surface mining and ultra-deep bench drilling.
- Key Advantage: The pinnacle of top-hammer drilling efficiency. The GT60 thread profile offers near-zero energy loss at the joints, allowing top-hammer rigs to compete directly with DTH (Down-The-Hole) setups at a lower energy cost.
| Parameter | Specification | Remarks |
|---|---|---|
| Thread Type | GT60 (Guided Trapezoidal) | Offers maximum energy transfer efficiency |
| Rod Type | Round 60 mm / Round 64 mm | Features integrated guide sections on MF-Rods |
| Drilling Hole Range | 92 mm – 152 mm (3 5/8″ – 6″) | Formulated for ultra-deep and straight blast holes |
| Standard Lengths | 3660mm, 4270mm, 6100mm | Custom tailored for mega-sized surface drill rigs |
| Flushing Hole Diameter | 28 mm / 30 mm | Supports maximum volume air/mist flushing |
| Core Application | High-capacity surface mining, massive quarrying | True top-hammer alternative to DTH drilling |
Quick Comparison: SHANDIKE Drifter Rod Matrix
| Model | Thread Profile | Standard Rod Type | Typical Application | Core Benefit |
|---|---|---|---|---|
| R32 | Rope | Hexagonal / Round | Tunneling & Drifting | Easy uncoupling, ideal for small holes |
| R35 | Rope | Round | Extension Drilling | Enhanced rigidity for tight spaces |
| T38 | Trapezoidal | Round / Extension | Heavy Tunneling & Bench | Balanced torque and impact handling |
| T45 | Trapezoidal | Round / Extension | Quarrying & Production | High power transmission efficiency |
| T51 | Trapezoidal | Round / Extension | Open-Pit Mining | Low hole deviation in deep holes |
| GT60 | Guided Trapezoidal | Round / MF-Rod | Large Surface Mining | Maximum energy transfer, DTH alternative |
Why SHANDIKE Drifter Rods Stand Out in & Performance

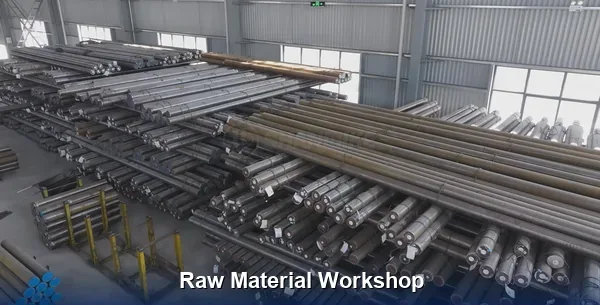

When looking for a reliable drilling tool manufacturer, field performance speaks louder than words. SHANDIKE manufactures its drifter rods using high-grade alloy steel combined with advanced heat treatment technologies:

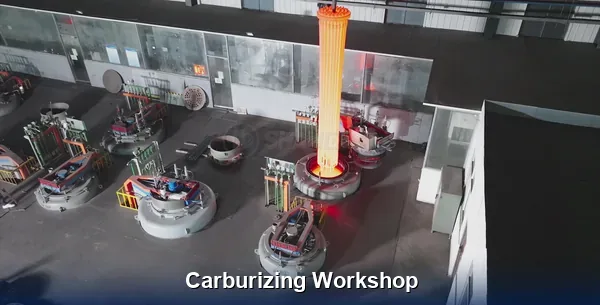

- Premium Carburization & Surface Hardening: Every rod undergoes state-of-the-art carburizing processes to ensure a hard, wear-resistant outer skin while maintaining a tough, shock-absorbing inner core.

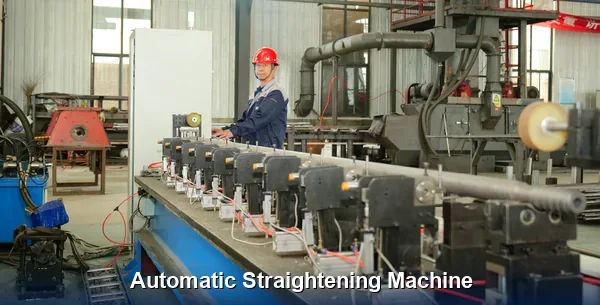

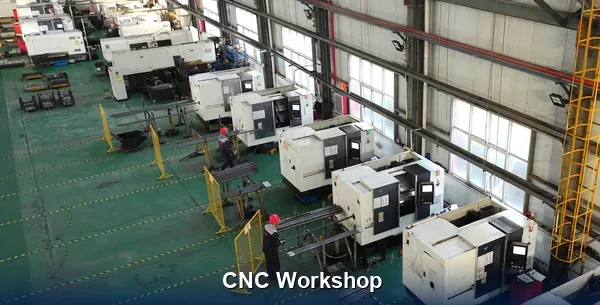

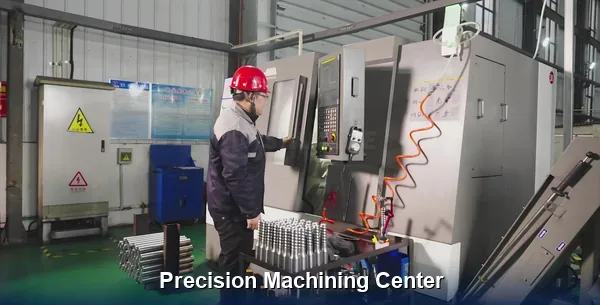

- Strict Straightness Standards: Advanced CNC machining guarantees perfect alignment, drastically reducing hole deviation and lowering the stress exerted on the rock drill rotation unit.
- Optimized Flushing Holes: Smooth internal flushing geometry ensures high air or water flow, rapidly clearing cuttings away from the bit face to prevent jammed rods.
Summary: How to Choose the Right Model
Choosing between R32, R35, T38, T45, T51, or GT60 comes down to three variables: your rig’s power output, the desired hole diameter, and rock hardness. For small tunnel headings, stick to the nimble R32/R35. For aggressive surface mining where speed and straightness are non-negotiable, upgrade to the heavy-duty T51 or GT60 series.
Maximize your meters per shift. Contact our technical team today to get a quote on premium SHANDIKE drifter rods tailored to your specific mining or construction project requirements.
