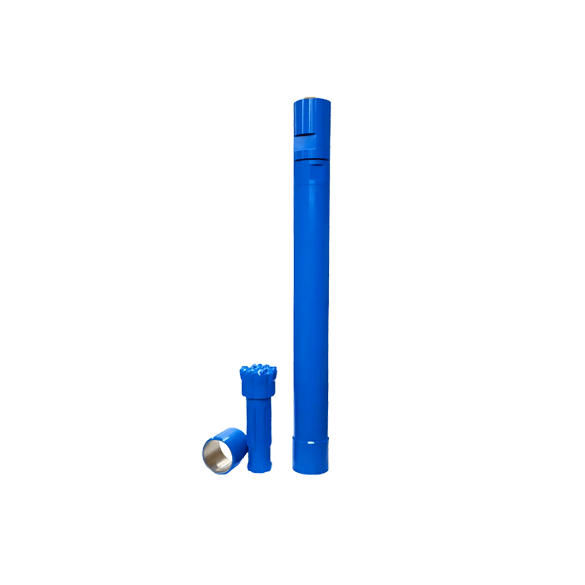

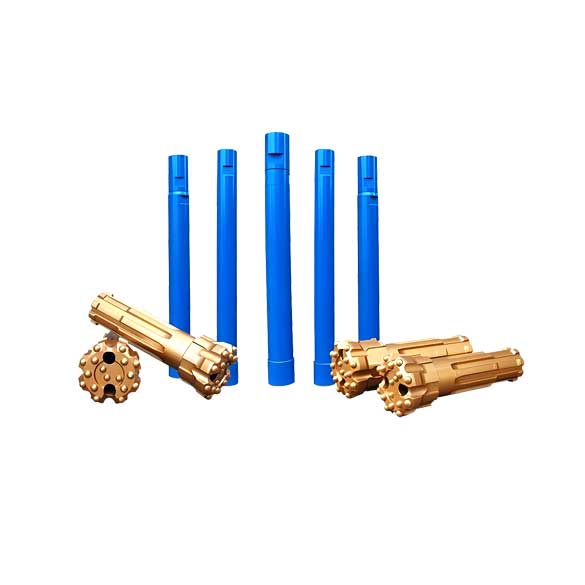

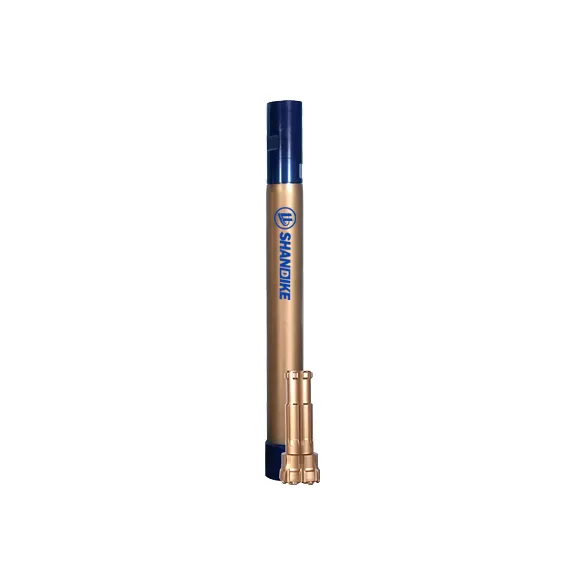

(Reverse Circulation) RC Hammer

The reverse circulation hammer is used to collect underground rock and mineral samples quickly and efficiently using a pneumatic rotary drill.

  • Bit shank: RE351,RC3.5,RE004,RE542,RE543,RE545,RE040,PR52,PR54,BD67
  • Top sub thread : R3",R3",R3.5",R4",M4",R3.5",R4",M4",R4",M4",M4.5",R4.5",M4",R4",M4.5",R4.5",M4.5",R4.5",M4.5",R4.5",M4.5"
  • Over 15 years experience in rock drilling TooLS industry.
  • Shandike only uses high-quality raw materials.
  • We set up our products standard matched with world leading brands.
  • Advanced processing equipment extends the service life of products.

Our products are widely used in open-pit or underground mining, hydraulic engineering, bridge engineering, construction engineering, geotechnical engineering.

Oil gas drilling and other field. Our main products include DTH (down-the-hole) hammers and bits with capacity of drilling holes from 64mm–1020mm in diameter, DTH drilling tools with large diameter for deep hole drilling, eccentric casing system (ODEX) and concentric casing system, reserve circulation hammers and bits, drilling rig, rock drilling accessories and other relative equipment. With strong technical strength, we are making effort to create the best brand of Chinese drilling tools, and to be the top manufacturer in the world.

Advantages

Accurate sampling;
Environmental operation;
Compared with conventional drilling tools, RC tools flush cuttings inside the pipe with small resistance to effect easy flushing;
Special custom made alloy steel is adopted for sampling tube and shroud, and the surface of flushing pipe is hardened;

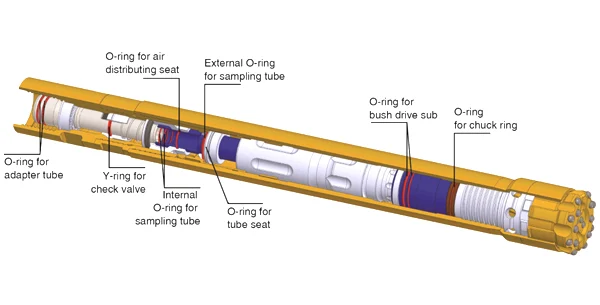

Good quality sealing rings are selected as follows:

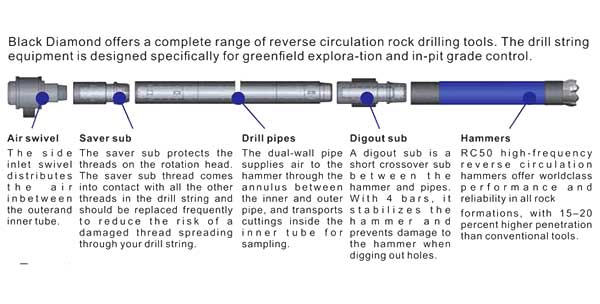

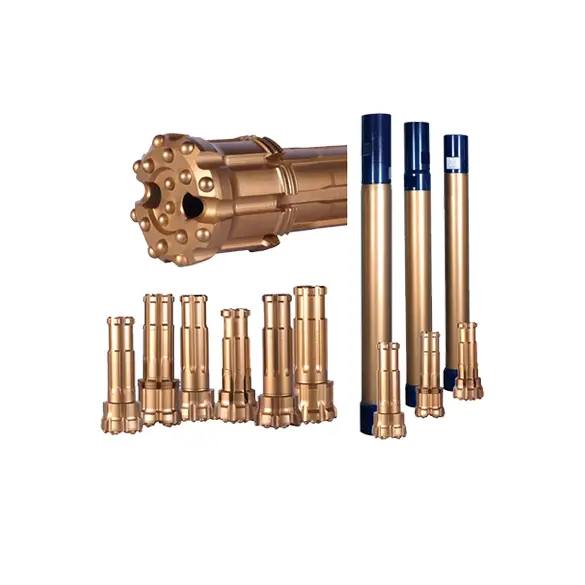

Reverse Circulation Drilling Tools

A drilling system that flushes cuttings out from inside the pipe; Low air consumption; Drilling depth no more than 600m;Each bit should be matched with corresponding shroud.

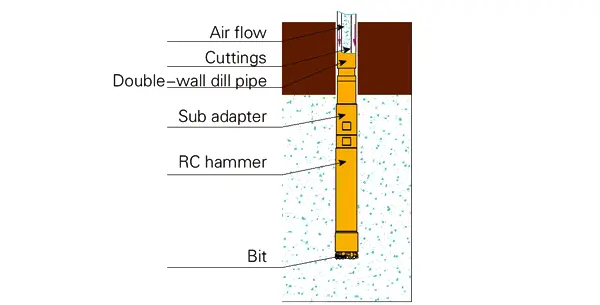

Operating mechanism

Compressed air flows into the annular space of the double-wall drill pipe, then into the inner pipe from the drilling tools in the bottom of hole, and carries cuttings out to the ground through the inner pipe.

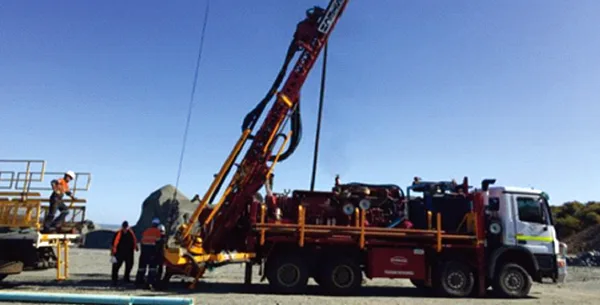

Applications

RC tools are used in geological exploration, water well drilling etc

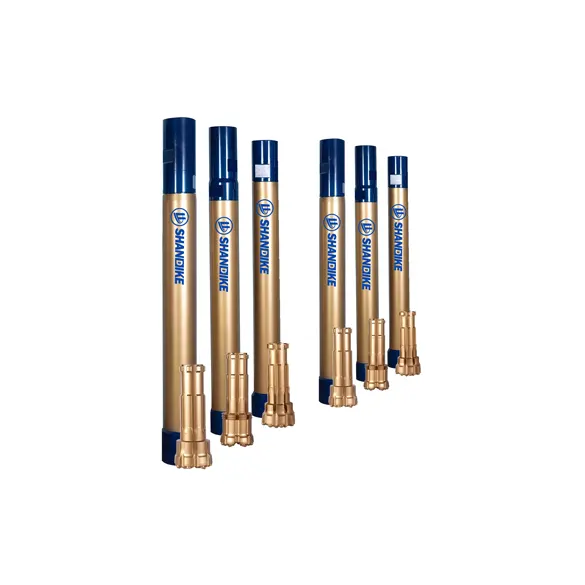

Specifications

ModelRec.hole size(mm)Thread connetionOuter diameter(mm)Length without bit(mm)Weight(kg)
TH1080RC115-130REMET3.5”108114550
TH1162RC124-146METZKE4.0″116119161
TH1186RC126-146REMET4.0″118121064
TH1214RC130-146METZKE4.0″121123473
TH1261RC135-152REMET4.5″126127268
TH1305RC140-165REMET4.5”130129482
TH0820RC203-254REMET4.5″1881415210
TH12JORC305-450API85/8”REG2801869.5590

Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
