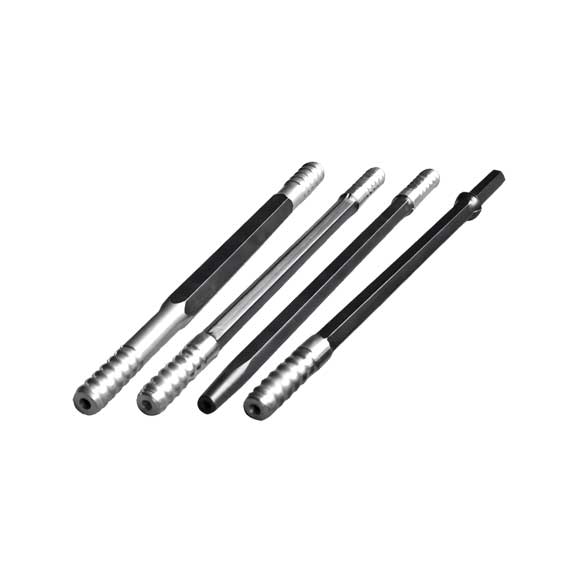

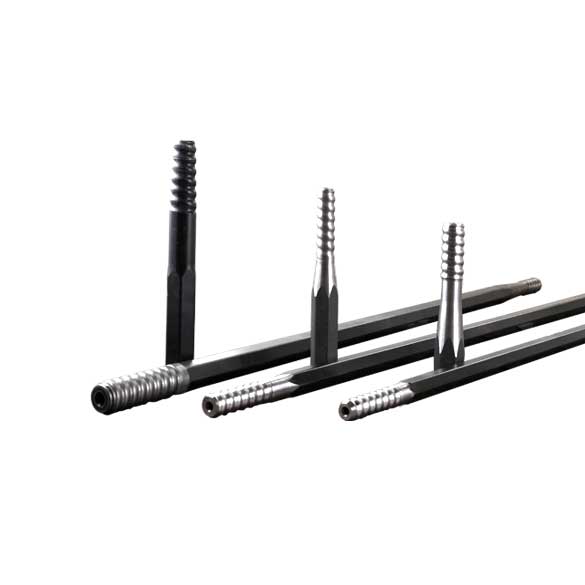

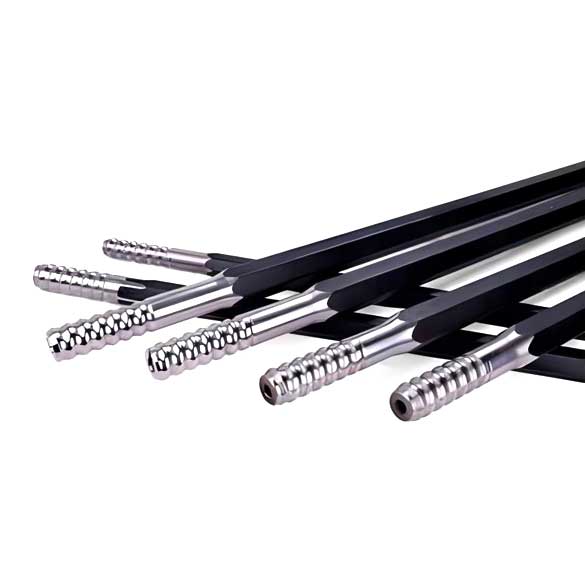

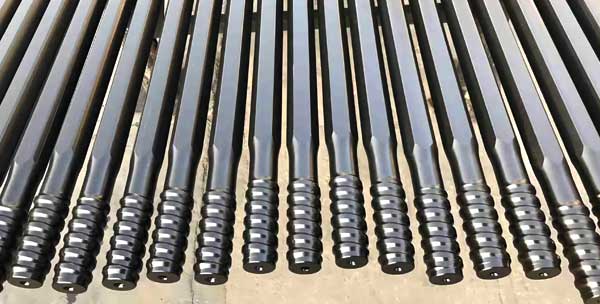

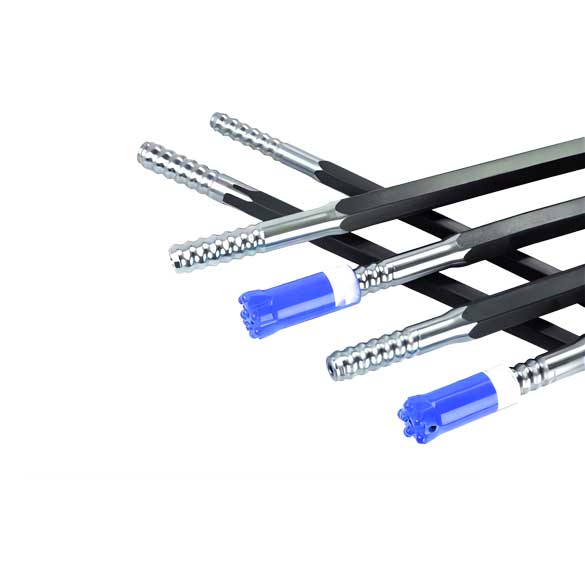

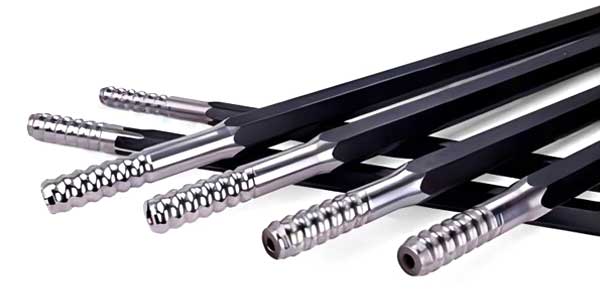

SHANDIKE Hexagonal drill rods(Drifting Drill Rod, MF Drill Rod)

Hexagonal drill rods are produced by CNC machining and advanced heat treatment on the base of the same steels as Sandvik.

Parameters

• Thread size: R22, R25, R28, SSR28, R32, SSR32, R35, SSR35, R38, T38, other.

• Rod size: Hex.22, Hex.25, Hex.28, Hex.32, Hex.35.

• Length: 2100mm to 6095mm.

Features

• Carburizing process is applied to promote surface hardness, thus grant better wearing quality and lifespan for the drill rods;

• 23CrNi3Mo, which is in same league as Sandvik Sandbar 64, is applied as drill rod material.

• Cost-effective, good performance with reasonable price.

• Complete types of drill rod for various drilling scenarios.

Applications

Drilling duties in tunneling, construction, mining, quarrying, etc.

Specifications

Drifting and Tunneling Rod / MF(Speed) Rod

Description	Length		Diameter		Weight
	mm	feet	mm	inch	kg
Drifter RodR32 – Hex.25 – R25	2100	6′ 10 5/8”	25	1”	8.60
	2200	7′ 2 5/8”	25	1”	9.00
	2400	7′ 10 1/2”	25	1”	9.30
	2600	8′ 6 3/8”	25	1”	10.0
	2800	9′ 2 1/4”	25	1”	10.8
	3090	10′ 1 5/8”	25	1”	12.0
Drifter RodR32 – Hex.28 – R28	2400	7′ 10 1/2”	28	1 1/8”	11.9
	2600	8′ 6 3/8”	28	1 1/8”	13.6
	3050	10′	28	1 1/8”	17.0
	3700	12′	28	1 1/8”	18.5
	4000	13′ 1/2”	28	1 1/8”	21.0
	4305	14′	28	1 1/8”	23.5
Drifter RodR38 – Hex.32 – R32	3050	10′	32	1 1/4”	19.5
	3700	12′	32	1 1/4”	24.0
	4305	14′	32	1 1/4”	27.9
	4915	16′	32	1 1/4”	31.8
Drifter RodR38 – Hex.35 – R32	3050	10′	35	1 3/8”	21.4
	3700	12′	35	1 3/8”	29.0
	4305	14′	35	1 3/8”	33.8
	4915	16′	35	1 3/8”	38.6
	5525	18′	35′	1 3/8′	43.4
Drifter RodT38 – Hex.35 – R32	3700	12′	35	1 3/8”	29.0
	4305	14′	35	1 3/8”	33.8
	4915	16′	35	1 3/8”	38.6
	5525	18′	35	1 3/8”	43.4
MF(Speed) Drifter RodT38 – Hex.35 – R32	3700	12′	35	1 3/8”	29.2
	4305	14′	35	1 3/8”	34.0
	4915	16′	35	1 3/8”	38.8
	5525	18′	35	1 3/8”	43.6
