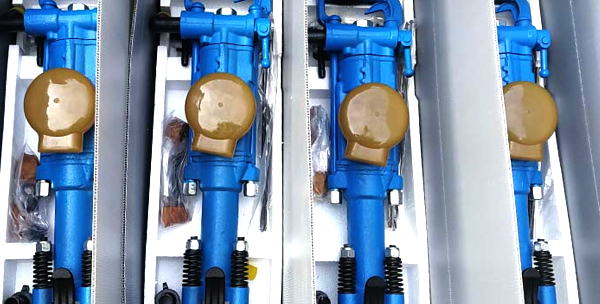

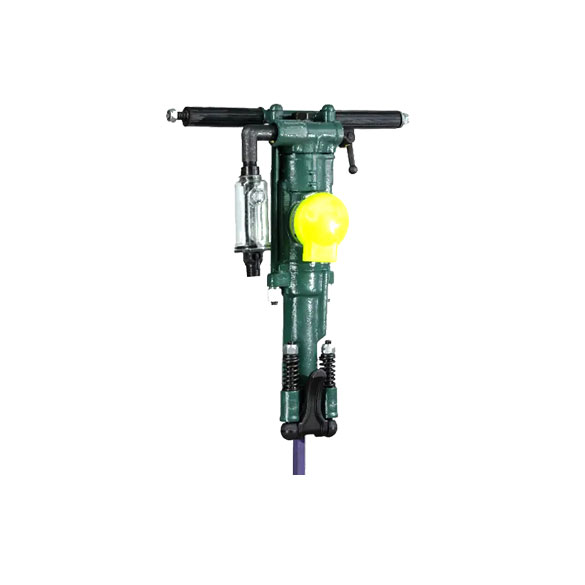

YT24 Air Leg Rock Drill Machine

YT24 air leg rock drill is a high efficiency rock drilling machine. It widely used in rock drilling blasting holes, it’s very important to coal mine, railway traffic, water conservancy and so on.

  • Weight: 24
  • Size: 675mm
  • Working pressure: 0.4~0.63Mpa
  • Over 15 years experience in rock drilling TooLS industry.
  • Shandike only uses high-quality raw materials.
  • We set up our products standard matched with world leading brands.
  • Advanced processing equipment extends the service life of products.

Introduction to yt24 air leg rock drill machine

1.YT24 is suitable for drilling horizontal or tiptilted blasthole in solid hard rocks as well as vertical bolt holes on the roof.

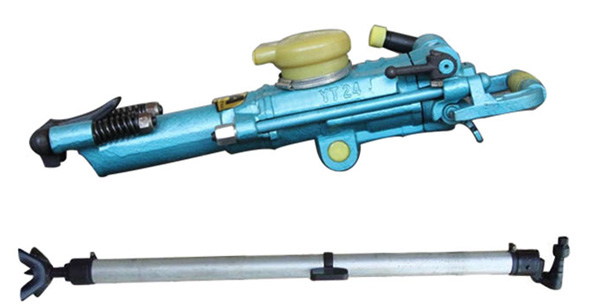

2.YT24 can be used with the air leg FT140B, FT140BD. It is also installed on drill rig or drill frame; meanwhile, we provide a transparent lubricator FY200B to observe the oil level and adjust the oil quantity in order to make sure a favorable lubrication.

3. It is the indispensable tool in mining, railway, transportation, water conservancy construction and earthwork projects.

YT24 Air Leg Rock Drill Machine


Working pressureMpa0.4~0.63
Piston diametermm70
Piston strokemm70
Air pipe inner diametermm19
Water pipe inner diametermm13
Drilling diametermm34~42
Max drilling depthm5
Shank sizemmH22×108
Impact frequencyHz ≥31(0.5MPa)
Impact energyJ≥31(0.5MPa)
Air consumptionL/s≤52
