High-Performance T45 Drifter Rods for Top Hammer Drilling Solutions
T45 drifter rods represent one of the most critical consumables in modern top hammer drilling systems. Designed to withstand extreme stress, high-frequency impact energy, and massive rotational torque, choosing the right drifter rod directly affects excavation efficiency and operational costs.
As a dedicated supplier of premium rock drilling tools, Luoyang Shandike Mechanical Equipment Co., Ltd provides engineered T45 drifter rods designed for bench drilling, production drilling, and tunneling in medium-to-hard rock formations.
What is a T45 Drifter Rod?
A T45 drifter rod (also known as an extension rod or speed rod) utilizes a 45mm trapezoidal thread configuration. This specific thread type is engineered for heavy-duty top hammer drills, providing a secure, self-centering connection that allows for efficient energy transfer from the rock drill piston to the drill bit. It also ensures rapid uncoupling, minimizing downtime during rod changes.
Key Technical Specifications & Parameter Matrix
To assist procurement and technical teams in selecting the correct equipment configuration, the standard parameter guidelines for our T45 drilling consumables are outlined below:
| Parameter Feature | Standard Specifications / Ranges |
| Thread Connection | T45 (Male-Male or Male-Female Type) |
| Rod Body Section | Round 46 (46mm diameter) / Hexagonal 39 |
| Available Lengths | 1525mm, 1830mm, 3050mm, 3660mm, 4270mm up to 6400mm |
| Flushing Hole Diameter | Standard 17mm or 21.5mm (Internal Center Hole) |
| Applicable Bit Sizes | Recommended for hole diameters from 76 mm to 127 mm |
| Material Composition | High-grade premium alloy steel (e.g., 23CrNi3Mo / 35SiMnMoV) |
| Heat Treatment Process | Full-body carburization / Deep surface hardening |

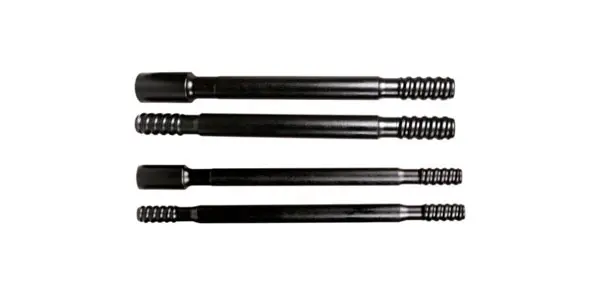

Structural Configurations Available
Depending on the specific rig automatic rod handling systems (RHS) and geology, Luoyang Shandike Mechanical Equipment Co., Ltd offers T45 rods in two distinct designs:
- MF-Rods (Male/Female Speed Rods): Featuring a male thread on one end and a female sleeve integrated into the other. MF-rods reduce energy loss by eliminating the need for separate coupling sleeves, leading to straighter holes and less thread wear.
- Extension Rods (Male/Male Rods): Featuring male threads on both ends, requiring a T45 coupling sleeve to join sections together. These are ideal for manual coupling systems or specific configuration setups.
Engineering Excellence & Material Integrity
Rock drilling environments expose the steel to combined stresses of compression, bending, and abrasive friction. The reliability of our T45 rods is achieved through rigorous manufacturing control:
- Premium Base Steel: We utilize alloy structural steel featuring high fatigue strength and impact toughness, ensuring the core remains ductile while preventing premature brittle fractures.
- Advanced Full-Body Carburization: The entire rod, including the delicate T45 threads, undergoes an advanced gas-carburizing heat treatment. This results in a hardened surface layer that resists frictional wear and thread galling while protecting against micro-fissures.
- Optimized Internal Flushing: Precision-drilled internal flushing holes allow for maximum air or water flow volume. Efficient flushing clears cuttings away from the bit face immediately, preventing re-drilling of rock chips and reducing abrasive wear on the rod flanks.
Applications and Industry Fit
T45 drifter rod systems are optimized for mid-to-deep hole drilling applications where T38 systems lack sufficient rigidity, and T51 systems would exceed the desired hole diameter requirements. They are widely utilized across:
- Surface Bench Drilling: Quarries and open-pit mining operations targeting 76mm – 102mm production holes.
- Underground Mining: Long-hole drilling, production drifting, and slotting applications.
- Tunneling & Civil Projects: Pipe roofing, anchoring, and large-scale drift excavation.
Why Partner with Luoyang Shandike Mechanical Equipment Co., Ltd?
At Luoyang Shandike Mechanical Equipment Co., Ltd, we focus on balancing mechanical performance with cost efficiency. By matching precise thread tolerances and implementing uniform heat treatment depths, our T45 drifter rods deliver predictable service lifespans. We assist our global clients by providing objective technical consultations, helping you match your specific rock drill models (such as Epiroc, Sandvik, or Furukawa series) to the exact tool specifications required.
