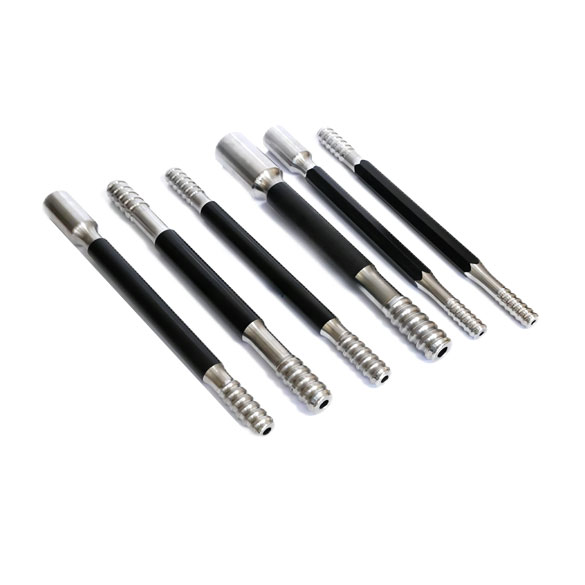

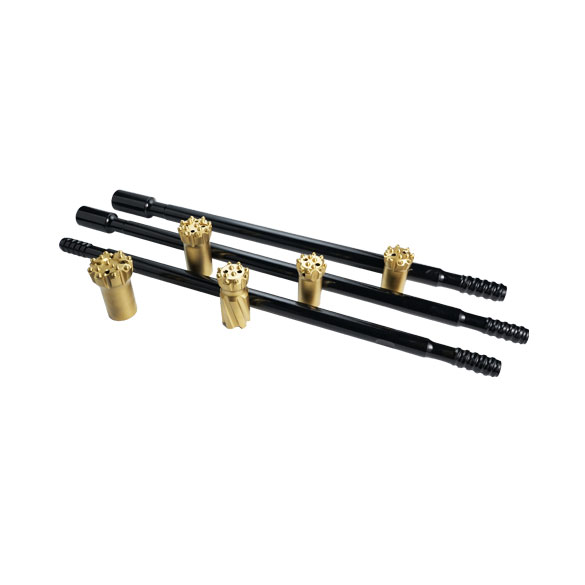

Rock Drill MF Rod (commonly referred to as Speed Drill Rod) features a male-female threaded configuration, with a male thread at one end and a female thread at the opposite end. This design enables direct coupling with the shank adapter without requiring an additional sleeve connector, thereby resolving the inherent issue of vibration-induced instability in traditional equal-diameter threaded joints. The optimized rapid transition mechanism between male and female threads enhances tool-change efficiency during drilling operations, significantly improving overall operational productivity.

1、Structural Features and Engineering Advantages

• This series of drill rods incorporates a patented differential-diameter thread connection system, featuring an asymmetric progressive thread design at the male (external) and female (internal) ends. Key innovations compared to conventional equal-diameter thread systems include:
• Torque transmission efficiency reaching 98.6% (per ASTM A919 testing protocols).
• Direct integration with shank adapters, eliminating the need for coupling sleeves.
• 30° tapered thread engagement surfaces, increasing contact area by 40%.
• Vibration damping coefficient enhanced to 0.85 (ISO 3408 compliant).

2. Manufacturing Processes and Material Properties

As an ISO 9001:2015-certified manufacturer, we operate two fully automated production facilities in China, equipped with:

• Vacuum degassing/oxygen decarburization (VD/VOD) refining furnaces
• 5-axis CNC thread machining centers
• Optical emission spectrometers (OES) for full-spectrum analysis

Our rods are fabricated from modified AISI 4140 Cr-Mo-V alloy steel (ASTM standard), subjected to a triple heat treatment process:

• 1. Normalization
• 2. Quenching and tempering
• 3. Surface nitriding

Resulting in critical performance metrics:

• Surface hardness: 58-62 HRC
• Core toughness: ≥45 J (Charpy impact test)
• Tensile strength: ≥1100 MPa
• Fatigue endurance: >10⁶ cycles (EN 10089 compliant)

 3. Product Matrix and Technical Parameters

We supply a full range of quick-change drill rods compliant with ISO 1718 and DIN 2050 standards, covering mainstream specifications:

 3.1 Rock Drilling Series

• R23MF: Applicable bore diameter Φ76-89mm
• R32MF: Torque capacity 3200 N·m
• R38MF: Bend resistance class B

 3.2 Tunnel Engineering Series

• T35MF: Maximum drilling depth 35m
• T38MF: Anti-galling coating applied
• T45MF: Dual coolant channel design

 3.3 Deep-Hole Drilling Series

• GT60MF: Suitable for >200m boreholes
• SR35: Hydrogen embrittlement-resistant (NACE MR0175 compliant)

 4. Performance Validation

Field tests conducted by the China Geological Equipment Certification Center (CGEC) demonstrate:

Average drilling efficiency in granite formations: 1.8 m/min (27% improvement over conventional systems).

-40°C low-temperature torque retention: 90% of rated capacity.

Deployed in national key projects including:

• Sichuan-Tibet Railway
• Baihetan Hydropower Station

Specification Of MF Rod

>>R23

	Length		Diameter		Weight	Model No.
	[mm]	[ft-in]	[mm]	[in]	[kg]
	2095	6′ 10 1/2“	22	7/8″	6.4	MF-R23-H22-2095
MF rod, Hex 22, R23 – R23	3050	10′	22	7/8″	10	MF-R23-H22-3050

>>SR28

	Length		Diameter		Weight	Model No.
	[mm]	[ft-in]	[mm]	[in]	[kg]
	3050	10′	25	1″	12.1	MF-SR28-H25-3050
MF rod, Hex 25, SR28 – SR28
	1200	3′ 11 1/4″	28	1 1/8″	6.2	MF-SR28-H28-1200
MF rod, Hex 28, SR28 – SR28	2000	6′ 6 3/4″	28	1 1/8″	10.5	MF-SR28-H28-2000

>>R32

	Length		Diameter		Weight	Model No.
	[mm]	[ft-in]	[mm]	[in]	[kg]
	915	3′	32	1 1/4″	5.5	MF-R32-D32-915
MF rod, Round 32, R32 – R32	1220	4′	32	1 1/4″	7.5	MF-R32-D32-1220
	1525	5′	32	1 1/4″	9.1	MF-R32-D32-1525
	1830	6′	32	1 1/4″	11	MF-R32-D32-1830
	3050	10′	32	1 1/4″	18	MF-R32-D32-3050
	3660	12′	32	1 1/4″	21	MF-R32-D32-3660
	3700	12′ 1 5/8″	35	1 3/8″	29	MF-T38/R32-H35-3700
MF Drifter rod, Hex 35, T38 – R32	4305	14′ 1 1/2″	35	1 3/8″	34	MF-T38/R32-H35-4305

>>T35

	Length		Diameter		Weight	Model No.
	[mm]	[ft-in]	[mm]	[in]	[kg]
	1830	6′	39	1 1/2″	16	MF-T35-D39-1830
MF rod, Round 39, T35 – T35	3050	10′	39	1 1/2″	25	MF-T35-D39-3050
	3660	12′	39	1 1/2″	32	MF-T35-D39-3660
	4265	14′	39	1 1/2″	35	MF-T35-D39-4265
	4875	16′	39	1 1/2″	40	MF-T35-D39-4875
	4305	14′ 1 1/2″	39	1 1/2″	35	MF-T35/R35-D39-4305
MF Drifter rod, Round 39, T35 – R35	4915	16′ 1 1/2″	39	1 1/2″	40	MF-T35/R35-D39-4915
	5525	18′ 1 1/2″	39	1 1/2″	45	MF-T35/R35-D39-5525
	6135	20′ 1 1/2″	39	1 1/2″	50	MF-T35/R35-D39-6135

>>T38

	Length		Diameter		Weight	Model No.
	[mm]	[ft-in]	[mm]	[in]	[kg]
	915	3′	39	1 1/2″	8.1	MF-T38-D39-915
MF rod, Round 39, T38 – T38	1220	4′	39	1 1/2″	11	MF-T38-D39-1220
	1525	5′	39	1 1/2″	12	MF-T38-D39-1525
	1830	6′	39	1 1/2″	15	MF-T38-D39-1830
	3050	10′	39	1 1/2″	25	MF-T38-D39-3050
	3660	12′	39	1 1/2″	30	MF-T38-D39-3660
	4265	14′	39	1 1/2″	36	MF-T38-D39-4265
	4875	16′	39	1 1/2″	41	MF-T38-D39-4875

>>SR38

	Length		Diameter		Weight	Model No.
	[mm]	[ft-in]	[mm]	[in]	[kg]
	1830	6′	39	1 1/2″	15.3	MF-SR38-D39-1830
MF rod, Round 39, SR38 – SR38	3050	10′	39	1 1/2″	25	MF-SR38-D39-3050
	4920	16′ 1 3/4″	39	1 1/2″	40	MF-SR38-D39-4920

>>T45

	Length		Diameter		Weight	Model No.
	[mm]	[ft-in]	[mm]	[in]	[kg]
	1220	4′	46	1 3/4″	14	MF-T45-D46-1220
MF rod, Round 46, T45 – T45	1525	5′	46	1 3/4″	18	MF-T45-D46-1525
	1830	6′	46	1 3/4″	21	MF-T45-D46-1830
	3050	10′	46	1 3/4″	35	MF-T45-D46-3050
	3660	12′	46	1 3/4″	41	MF-T45-D46-3660
	4265	14′	46	1 3/4″	48	MF-T45-D46-4265
	6095	20′	46	1 3/4″	69	MF-T45-D46-6095

>>T51

	Length		Diameter		Weight	Model No.
	[mm]	[ft-in]	[mm]	[in]	[kg]
	1525	5′	52	2″	23	MF-T51-D52-1525
MF rod, Round 52, T51 – T51	1830	6′	52	2″	27	MF-T51-D52-1830
	3660	12′	52	2″	50	MF-T51-D52-3660
	4265	14′	52	2″	57	MF-T51-D52-4265
	5485	17’11″	52	2″	72	MF-T51-D52-5485
	6095	20′	52	2″	87	MF-T51-D52-6095

>>GT60

	Length		Diameter		Weight	Model No.
	[mm]	[ft-in]	[mm]	[in]	[kg]
	3660	12′	60	2 3/8″	73	MF-GT60-D60-3660
MF rod, Round 60, GT60 – GT60	4265	14′	60	2 3/8″	86	MF-GT60-D60-4265
	5485	18′	60	2 3/8″	107	MF-GT60-D60-5485
	6095	20′	60	2 3/8″	120	MF-GT60-D60-6095
	4265	14′	64	2 1/2″	92	MF-GT60-D64-4265
MF rod, Round 64, GT60 – GT60
